Designing asphalt pavement in Fort Wayne means confronting the freeze-thaw reality head-on. The seasonal frost penetration here, often reaching 30 to 40 inches below grade, turns marginal silty-clay subgrades into a maintenance nightmare if the structural section isn't right. Our approach to flexible pavement design starts with the subgrade—running CBR and resilient modulus testing on samples taken after the spring thaw, when the soil is at its weakest. That's the only way to catch the true support value. Without that local calibration, even a thick asphalt layer can rut and crack within two or three winters. We also factor in the high water table common in the St. Joseph River floodplain—subsurface drainage isn't optional here, it's part of the structural section.

Fort Wayne's frost depth can reach 40 inches. If your pavement design doesn't account for that, you're just buying a temporary surface, not a permanent asset.

Our approach and scope

We build every Fort Wayne flexible pavement structure around the AASHTO 1993 design guide, supplemented by the local frost depth maps from the Allen County building department. The structural number gets verified against actual CBR values from the site—we don't rely on textbook correlations for the clayey tills that dominate this region. A typical section might combine a dense-graded HMA surface course over a crushed aggregate base, but the base thickness depends entirely on how much frost heave we predict. In the northern part of the county, where the native soil is lean clay with a plasticity index above 15, we often specify a separator geotextile between the subgrade and the aggregate base—it prevents fines migration during the wet spring months. This detail alone can double the pavement's fatigue life, and it's something we learned from watching county roads fail prematurely along Lima Road and Dupont corridor. For heavy industrial yards, we also run a full triaxial test on the subgrade to get the actual cohesion and friction angle, which feeds directly into the layered elastic analysis.

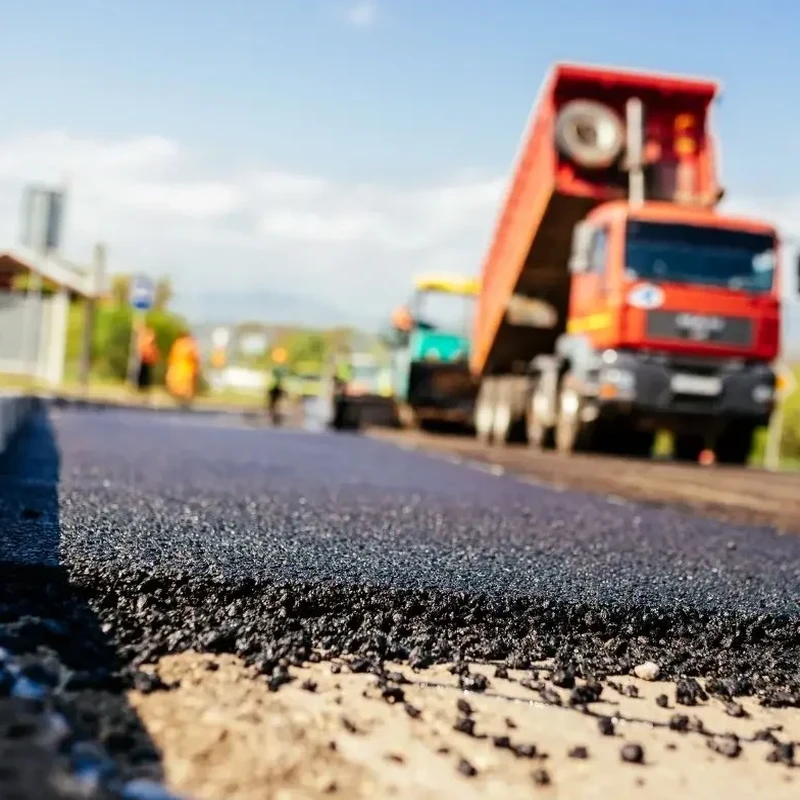

Flexible Pavement Design in Fort Wayne: Frost Action and Subgrade Performance

Local geotechnical context

A common failure pattern we see in Fort Wayne is alligator cracking at the outer wheel path within three years of construction—and it almost always traces back to poor subgrade compaction or a thin base layer. The problem is that contractors sometimes place and compact the aggregate base on frozen subgrade in late fall; once it thaws in April, the base loses support and the asphalt starts working in flexure. That's not a material defect—it's a construction sequencing error that a proper QA/QC plan would catch. Another risk is underestimating the drainage coefficient. The flatter terrain west of I-69 holds water longer, and if the pavement section doesn't include a daylighted base layer or a subdrain, the saturated subgrade can lose 40% of its strength before anyone notices the rutting. We specify the drainage quality in the design report so the contractor knows it's not optional—it's a structural requirement.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.biz

Reference standards

The design is based on the AASHTO Guide for Design of Pavement Structures (1993), ASTM D1883 (CBR), ASTM D1557 (Modified Proctor), and INDOT Standard Specifications.

Complementary services

Subgrade Evaluation for Pavement Design

We extract Shelby tube samples and run laboratory CBR tests, plus in-situ DCP testing to map the subgrade variability across the project site. The resilient modulus is correlated per the NCHRP 1-37A model for Level 1 design.

Full-Depth Asphalt Structural Section

Using the AASHTO 93 empirical method, we calculate the required asphalt thickness, base course, and any subbase stabilization layers. The report includes the structural number, layer coefficients, and a frost protection check for Fort Wayne's climate.

Typical parameters

Parameter	Typical value
Design Method	AASHTO 1993 (Empirical)
Typical Frost Depth (Fort Wayne)	30-40 inches
Design Traffic (ESALs)	Site-specific, per traffic count
Serviceability Loss (ΔPSI)	1.7 or 2.0 per owner criteria
Subgrade Input	CBR or resilient modulus (Mr)
Base Layer Material	Crushed aggregate, IDOT CA-6 or equivalent
Asphalt Binder Grade	PG 64-22 per INDOT spec

Quick answers

Why does flexible pavement in Fort Wayne need a thicker base than in southern Indiana?

Because of the freeze-thaw cycles. The frost depth in Fort Wayne routinely reaches 30 to 40 inches, and the base layer acts as a capillary break and frost protection. If the base is too thin, frost heave will lift the asphalt unevenly, and the spring thaw will leave a weakened, saturated subgrade that ruts under traffic. Southern Indiana has shallower frost depth, so the base thickness can be less.

What subgrade tests are required before designing the pavement section?

At minimum, we run a CBR test on a remolded sample at the expected field density and moisture content. For higher-traffic facilities, we also measure the resilient modulus. A grain-size analysis and Atterberg limits tell us if the soil is frost-susceptible—silts and lean clays with PI below 15 are the worst offenders for frost heave in Fort Wayne.

How much does a flexible pavement design for a commercial parking lot cost?

Can you design a pavement section that uses reclaimed asphalt pavement (RAP) in the base?

Yes. We can incorporate RAP into the base or binder course, but we require a laboratory mix design to verify the stiffness and moisture sensitivity. The structural layer coefficient for the RAP layer is adjusted based on the recovered binder properties, following the AASHTO 1993 appendix on recycled materials.
