Pile Foundation Design Services in Fort Wayne

Q: How much does pile foundation design cost for a typical Fort Wayne project?

A straightforward driven H-pile design for a single commercial building falls toward the lower end, while a full design package with lateral analysis, drivability assessment, and load test specifications for a multi-story structure with challenging glacial stratigraphy occupies the upper range.

A five-story mixed-use building near the Saint Marys River presented settlement cracks in adjacent structures before excavation even began. The culprit was a buried paleochannel filled with organic silt, invisible from the surface but immediately apparent in the cone penetration test logs. Fort Wayne sits on a complex glacial landscape where the Maumee River and its tributaries have carved channels, deposited lenses of soft clay, and left behind dense till at varying depths. Standard shallow footings simply cannot handle that level of subsurface variability. The CPT test data revealed a competent bearing layer at 42 feet, making driven H-piles the clear choice. The design followed IBC Chapter 18 with site-specific response spectra from ASCE 7-22, ensuring the pile group could handle both the 950-kip column loads and the 0.12g short-period acceleration expected for Allen County. When the glacial stratigraphy throws surprises, pile foundation design transforms from a routine calculation into a forensic exercise, and that is where our Fort Wayne team spends most of its time: correlating SPT drilling blow counts with laboratory index tests to build a model that actually reflects what the ice left behind.

Glacial till in Fort Wayne can carry end-bearing pressures exceeding 20 ksf, but only if the pile tip penetrates below the weathered crust and into unoxidized material.

Our approach and scope

Fort Wayne sits at an elevation of roughly 810 feet above sea level, on a landscape shaped by the Wisconsinan glacial advance that left behind a veneer of loess over clay-rich till. That till, while dense, often contains cobbles and boulders that make driven pile refusal depths unpredictable. A project on the city's northeast side encountered granite erratics at 28 feet that forced a switch from closed-end pipe piles to drilled shafts socketed into bedrock, a decision made possible because the triaxial testing program had already characterized the till matrix strength at confining pressures up to 60 psi. The pile foundation design process in this region requires continuous cross-referencing between field observations and lab data. We routinely run consolidated-undrained triaxial tests per ASTM D4767 on undisturbed Shelby tube samples to extract effective stress parameters, then feed those into t-z and q-z analyses for single-pile response. Lateral load behavior matters too, especially for bridge abutments along the St. Joseph River where scour can remove 15 feet of overburden during a 100-year flood event. The design team models those conditions with LPILE or GROUP, using p-y curves calibrated to the stiff clay criteria from Reese and Van Impe. Every pile foundation design we deliver for Fort Wayne projects includes a constructability review that flags potential refusal horizons, groundwater management needs at roughly 12 to 18 feet below grade, and vibration monitoring thresholds for nearby historic structures in neighborhoods like West Central.

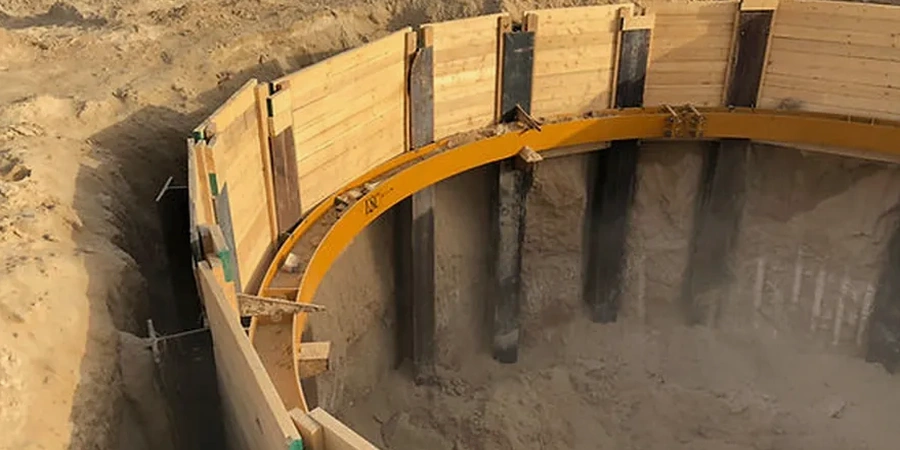

Pile Foundation Design Services in Fort Wayne | Deep Foundation Engineering

Local geotechnical context

The most common mistake we see in Fort Wayne pile projects is assuming that end-bearing on glacial till eliminates the need for a settlement analysis. Till is not bedrock; even dense preconsolidated till compresses under sustained load, and differential settlement between interior and perimeter piles can tear apart a slab-on-grade within the first two winters. Another recurring problem is ignoring downdrag in areas where recent fill has been placed. A warehouse expansion near Fort Wayne International Airport added 8 feet of engineered fill over soft alluvium, and the original pile design did not account for the 18-kip-per-pile negative skin friction that developed over the following 18 months. The piles did not fail structurally, but the pile cap rotated enough to misalign a conveyor system, costing the owner six figures in retrofit work. Our Fort Wayne pile foundation design reports explicitly address neutral plane location, downdrag loads per FHWA-NHI-05-042, and long-term settlement under the design life load combination. We also require preproduction pile testing on any project with more than 50 piles, because the difference between predicted and observed blow counts in glacial cobble fields can change the required hammer energy by 30 percent or more.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.biz

Reference standards

The design services for pile foundations in Fort Wayne adhere to IBC 2021 Chapter 18, ASCE 7-22, ASTM D1586-18, ASTM D4767-20, ASTM D3966-22, FHWA-NHI-05-042, and the AASHTO LRFD Bridge Design Specifications, 10th Edition, ensuring compliance with current deep foundation engineering standards.

Complementary services

Axial and Lateral Pile Capacity Analysis

We compute ultimate and allowable capacities using both static formulas and in-situ test correlations. For driven piles in Fort Wayne till, we apply the FHWA Gates formula calibrated to local SPT data, cross-checked with CPT-based methods from Eslami and Fellenius. Lateral capacity uses strain-compatible p-y analysis for the full pile group, accounting for pile-head fixity and group reduction factors.

Drivability and Constructability Review

Every pile foundation design includes a wave equation analysis using GRLWEAP or equivalent software to select hammer size, assess driving stresses, and estimate blow counts through the full soil profile. We identify refusal risks in cobble-rich till zones common across Allen County and recommend predrilling or spudding contingencies where necessary.

Pile Load Test Program Design and Interpretation

We specify static load test configurations, instrumentation arrays including strain gages and telltales, and acceptance criteria per ASTM D1143. For large projects, we design bi-directional Osterberg cell tests to measure separate side-shear and end-bearing responses, then use those results to optimize production pile lengths and reduce overall foundation cost.

Typical parameters

Parameter	Typical value
Pile types analyzed	Driven H-pile, pipe pile, drilled shaft, micropile, helical pile
Design axial capacity range	60 to 1,200 kips per pile depending on diameter and bearing stratum
Lateral load analysis method	p-y curves per Reese (stiff clay) and API RP 2GEO (sand)
Settlement evaluation	t-z and q-z transfer functions, equivalent top-down load-settlement curve
Drivability assessment	Wave equation analysis (GRLWEAP) with hammer-pile-soil system modeling
Typical pile lengths in Allen County	35 to 80 feet, depending on depth to dense till or bedrock
Corrosion zone consideration	Top 10 feet in fill or disturbed soil, per FHWA GEC-12 guidelines

Quick answers

How much does pile foundation design cost for a typical Fort Wayne project?

What pile types work best in the glacial soils around Fort Wayne?

Driven H-piles and closed-end pipe piles perform well in the dense glacial till that underlies much of Fort Wayne, provided the driving system can handle occasional cobbles and boulders. In areas with thicker soft alluvium near the Maumee or St. Joseph rivers, drilled shafts or augered cast-in-place piles may be more economical because they eliminate splice requirements for long piles. Micropiles work well for underpinning projects in tight access conditions common in older neighborhoods.

How long does a pile foundation design take from investigation to final report?

A typical pile foundation design for a Fort Wayne project takes three to five weeks from completion of the subsurface investigation. The first week focuses on laboratory testing and parameter selection, the second on axial and lateral capacity analyses, and the final week on report preparation and coordination with the structural engineer. Projects requiring pile load test design and interpretation may extend the schedule by an additional two to three weeks depending on test duration.

Do I need a pile load test, or can we rely on static formulas alone?

IBC Section 1810.3.3.1 requires load testing for piles unless the design is based on sufficient subsurface data and comparable local experience. In Fort Wayne, where glacial till properties vary significantly over short distances, we recommend at least one static load test or high-strain dynamic test per distinct geologic unit on projects exceeding 50 piles. The load test data almost always allows us to reduce the factor of safety or shorten pile lengths, recovering the test cost several times over.
