Active and Passive Anchor Design for Fort Wayne Subsurface Conditions

Fort Wayne's development along the confluence of the St. Marys and St. Joseph rivers created a legacy of buried infrastructure and variable fill deposits that complicate deep excavation support. The city expanded through the 20th century onto glacial outwash plains where interbedded sands and silts demand restraint systems beyond conventional bracing. Our anchor design work in Allen County focuses on the transition zone between dense till and weathered shale, a contact that often dictates the difference between a passive wedge failure and a successful bonded length. The retaining wall projects across downtown Fort Wayne routinely encounter groundwater at less than 12 feet, requiring careful consideration of effective stress along the grout-ground interface during design.

Bond zone verification in Fort Wayne's interlaminated silt and clay requires a minimum three-anchor sacrificial test program before production drilling begins.

Methodology and scope

At an elevation of 810 feet above sea level, Fort Wayne sits on a sequence of Wisconsin-age glacial deposits ranging from 30 to over 100 feet thick. Anchor capacities in this profile derive from the undrained shear strength of the upper clay layer, typically 800 to 1,500 psf, transitioning to friction angles of 32 to 36 degrees in the underlying granular till. We specify double-corrosion protection when soil resistivity drops below 2,000 ohm-cm, which occurs frequently in the industrialized corridors near the Maumee River. Bond lengths are calculated using the Littlejohn method for both gravity-grouted and post-grouted tendons, with a minimum unbonded length of 15 feet for bar anchors. Proof testing to 133 percent of design load per PTI DC35.1 confirms the creep rate stays under 2 mm over a 10-minute observation period. Load cells on selected anchors monitor relaxation in the high-plasticity clays found beneath the city's east side.

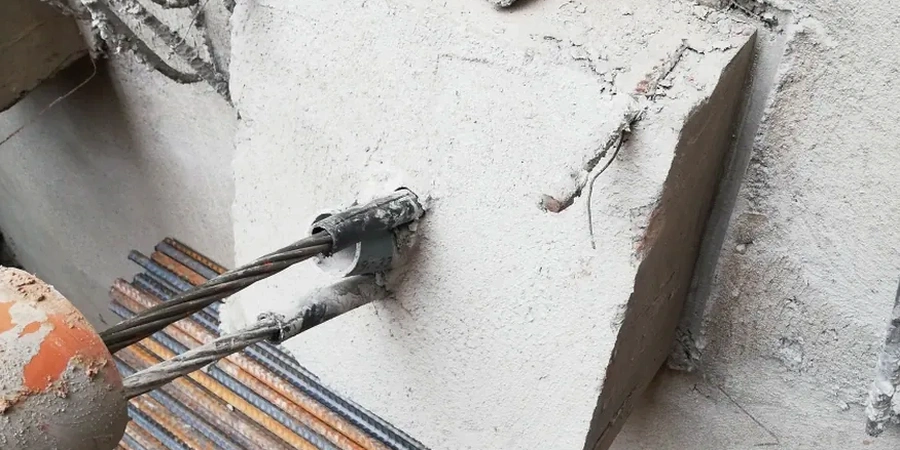

Active and Passive Anchor Design for Fort Wayne Subsurface Conditions

Local considerations

The near-downtown district and the suburban expansion zones north of Coliseum Boulevard present starkly different geotechnical profiles for anchor design. Downtown, 19th-century fill mixed with organic silts creates a loose upper horizon where passive resistance develops only after several inches of movement, a condition unacceptable for adjacent structures. North-side subdivisions sit on stiffer lodgement till where passive pressures mobilize within fractions of an inch but drilling rates slow considerably through cobble lenses. The greater risk lies in assuming uniform conditions across a single site. A bond zone that passes through a sand seam in an otherwise clay matrix can drain during drilling, collapsing the borehole before grout placement. We specify tremie grouting from the bottom up when groundwater is within 5 feet of the bond zone, standard practice for the flood-prone reaches of the St. Marys floodplain.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.biz

Applicable standards

ASTM D3689-22, PTI DC35.1-20, IBC Chapter 18, ASCE 7-22

Associated technical services

01

Geotechnical Anchor Feasibility

Review of existing borings and laboratory data to determine anchor type suitability (active or passive), bond zone location, and estimated capacities before mobilization.

02

Tendon Design and Corrosion Protection

Calculation of tendon grade, bar or strand configuration, and selection of encapsulation details per PTI guidelines for the site-specific soil resistivity measured in Fort Wayne soils.

03

Performance and Proof Testing

On-site supervision of load tests with calibrated hydraulic jacks and dial gauges, recording creep displacement at 1, 2, 3, 4, 5, 6, and 10-minute intervals to validate design assumptions.

04

Long-Term Monitoring and Lock-Off

Installation of vibrating wire load cells on critical anchors, periodic readings, and lock-off adjustment recommendations for projects where post-tensioning loss could affect excavation performance.

Typical parameters

ParameterTypical value
Bond length design methodLittlejohn (PTI DC35.1)
Minimum unbonded length (bar anchors)15 ft
Proof test load133% of design load
Creep criterion (10-min observation)< 2 mm movement
Soil resistivity threshold (corrosion protection)< 2,000 ohm-cm
Passive wedge angle (drained till)32° to 36°
Typical anchor capacity range50 to 200 kips

Frequently asked questions

What distinguishes an active anchor from a passive anchor?

Active anchors are post-tensioned to a specified lock-off load immediately after installation, actively compressing the retained soil or structure. This controls movement from the start. Passive anchors develop resistance only as the ground deforms, mobilizing reaction gradually — suitable where some displacement is tolerable and the structure can accommodate minor movement before full restraint engages.

How much does an anchor design and testing program cost in Fort Wayne?

A complete anchor design package with sacrificial testing, production anchor calculations, and on-site proof testing supervision typically ranges from US$1,030 to US$3,830, depending on the number of anchors, the complexity of the soil profile, and whether long-term monitoring with load cells is required.

How deep into the Fort Wayne glacial till must the bond zone extend?

Bond length is calculated based on the allowable grout-ground bond stress, which for the dense lodgement till underlying Fort Wayne typically ranges from 15 to 25 psi. The bond zone must extend beyond the active wedge defined by a line drawn at 45 degrees plus one-half the effective friction angle from the base of the excavation, verified through trial anchor testing on site.
